UI patterns

Guidepost was checked against the in-app guidance patterns documented by eight commercial digital adoption platforms and six open-source tour libraries. The full audit, with a row per pattern, is docs/UI-COVERAGE.md in the repository.

Counts

Main catalogue, 84 patterns (audit dated 2026-10-05):

Status	Count	Meaning
Supported	66	The schema field exists, the player reads it and a component draws it
Partial	13	Works with a verified limitation
Missing	5	Not in the code. Rows 50 and 59 are planned for step two
Renderer-only	0

The audit also lists 7 host conditions (shadow DOM, transforms, host dialogs and similar) and 4 items from the original brief that no vendor documents. Surveys and NPS are not built.

The audit's last full end-to-end run was 323 tests passed, none skipped, in headless Chromium. Edge has not been run.

Gallery

These 20 screenshots are produced by e2e/specs/showcase.spec.ts against the ui-lab fixture page and copied into the site at build time.

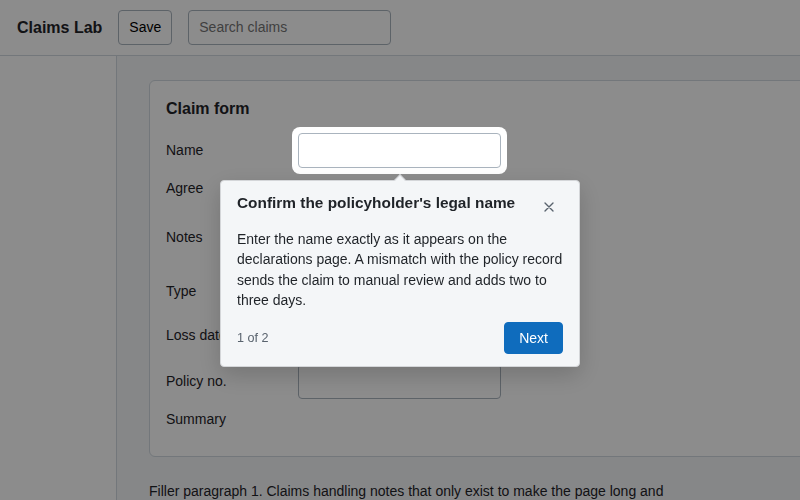

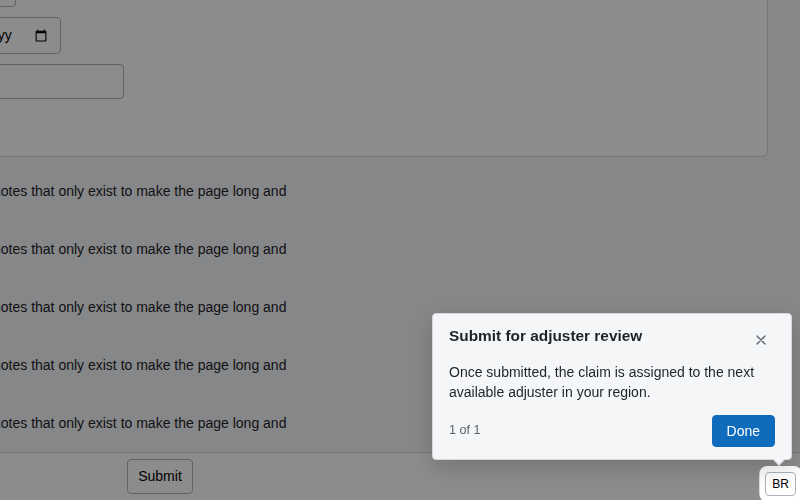

Tooltip with a spotlight cutout	Tooltip flipped at a viewport corner

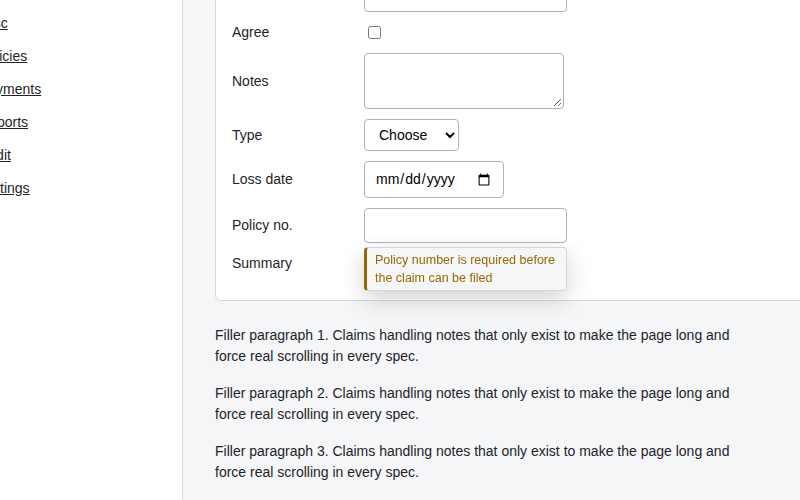

Tip icon with a documentation link	Validation hint

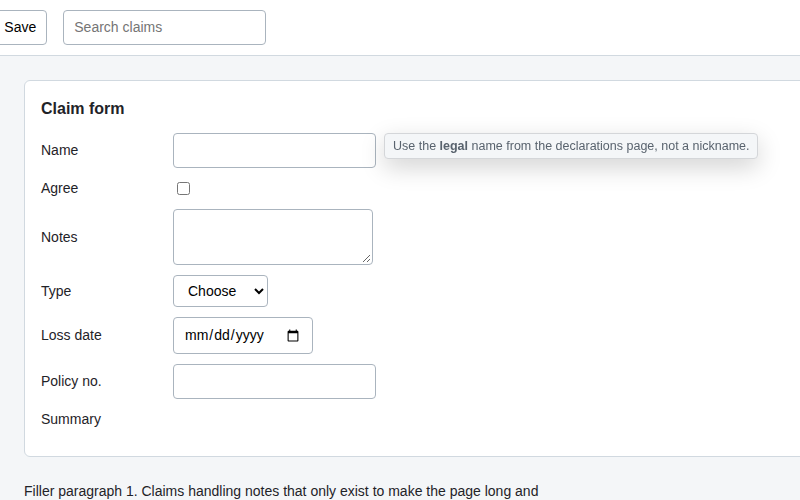

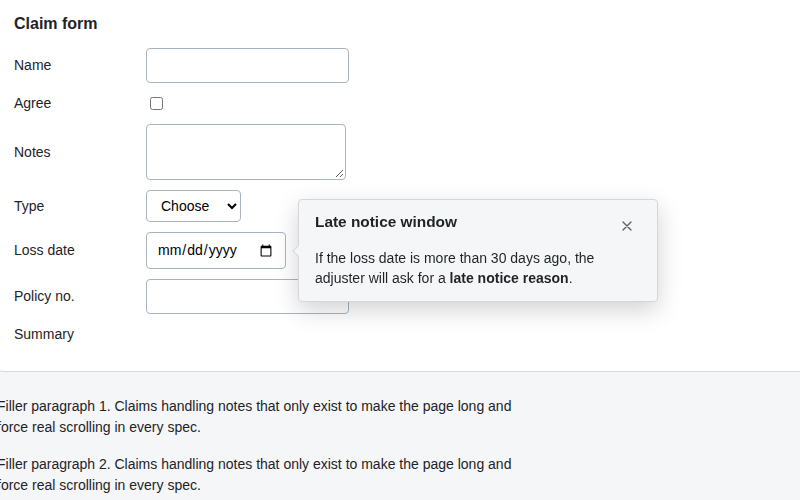

Inline hint	Beacon hotspot, open

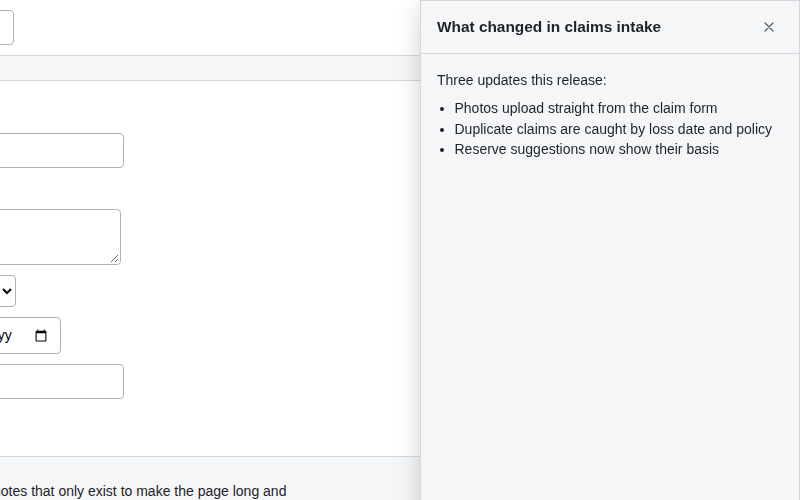

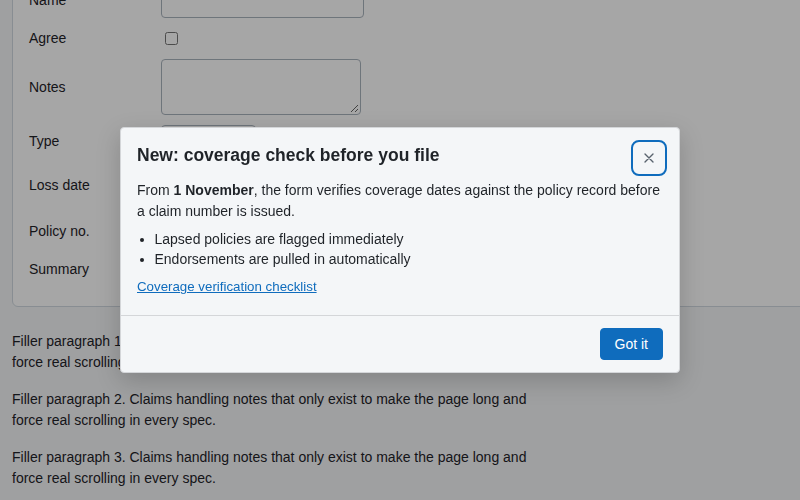

Modal announcement	Slide-out

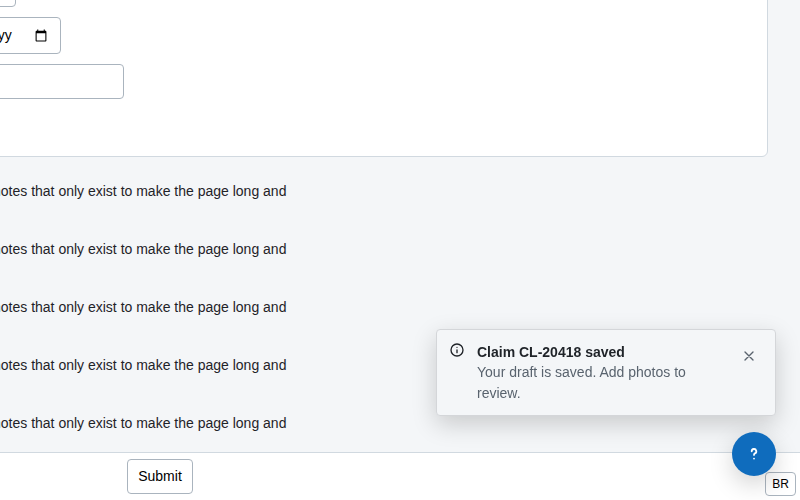

Toast with the help bubble	Top banner with a stepper

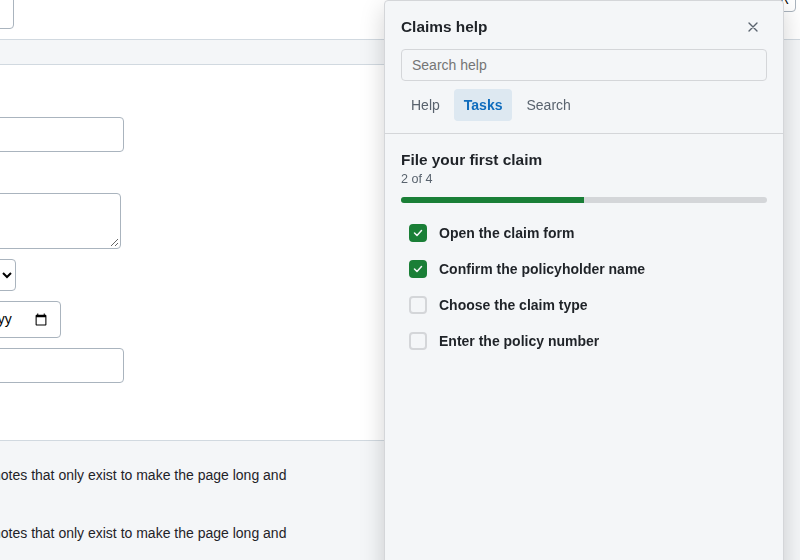

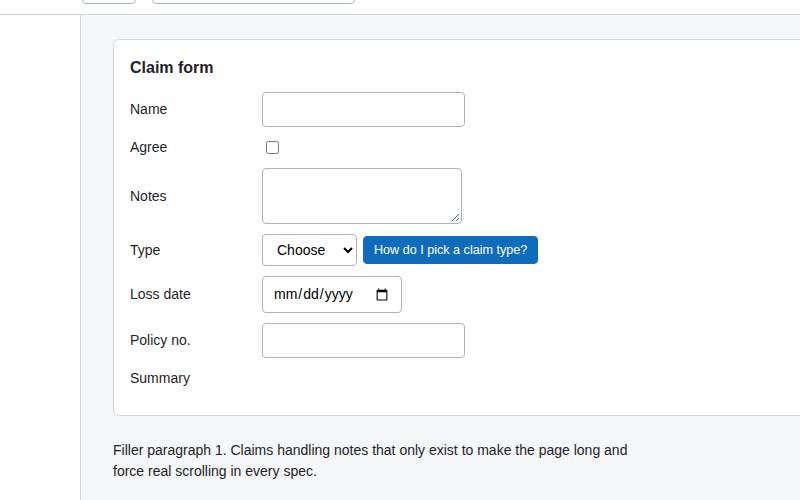

Resource centre with checklist progress	Launcher button

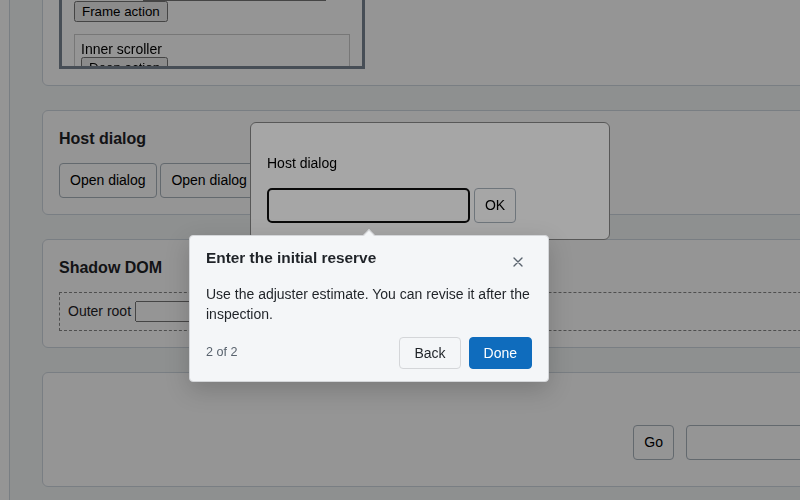

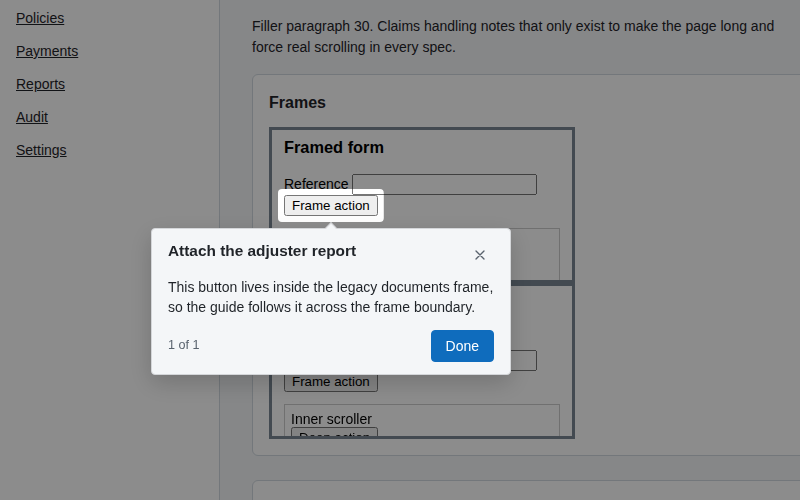

Tooltip inside a same-origin iframe	Tooltip above a host modal dialog

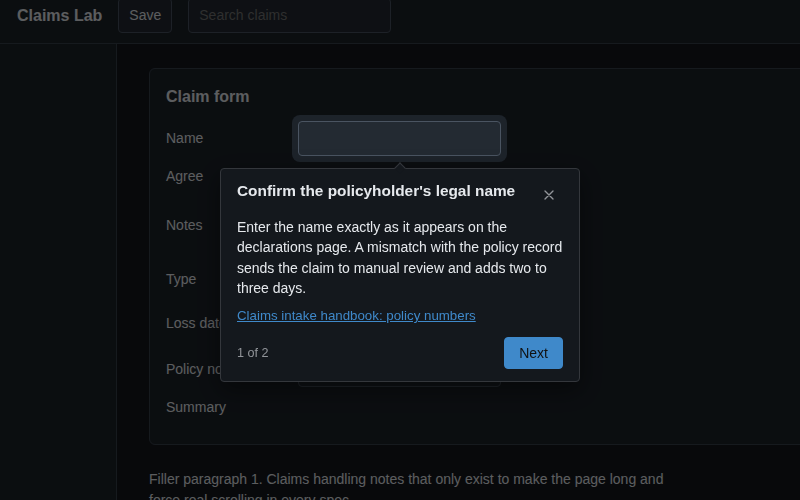

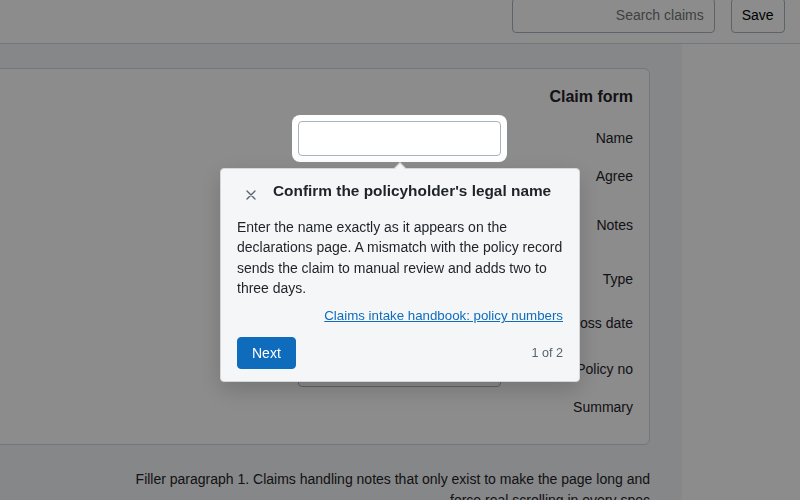

Dark scheme	Right-to-left layout

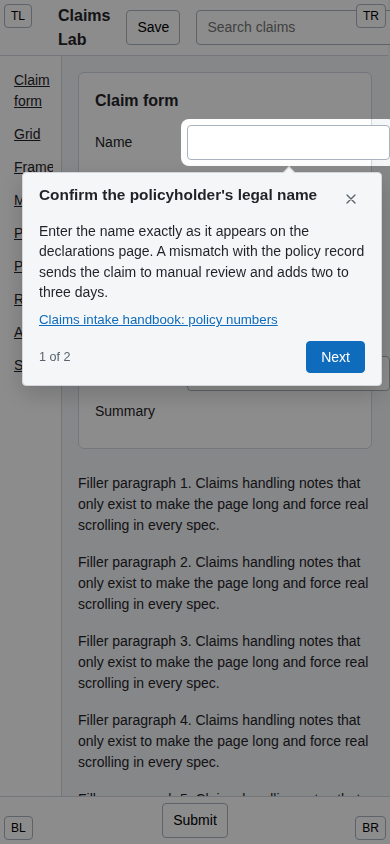

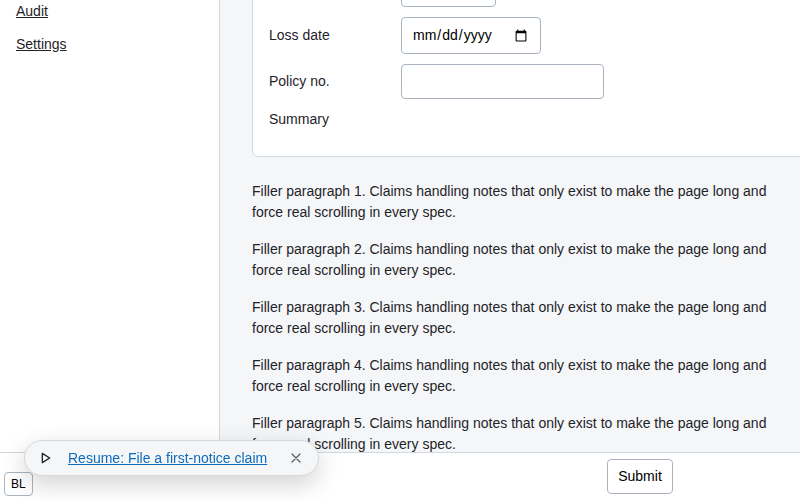

Narrow viewport (390 px)	Resume chip

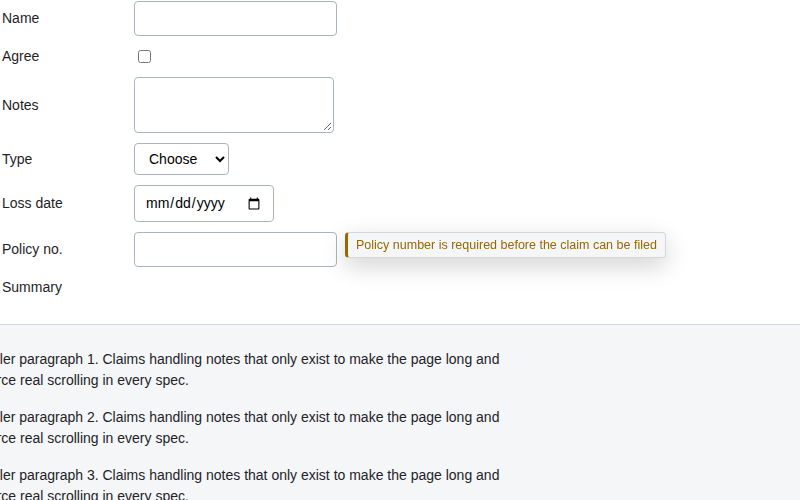

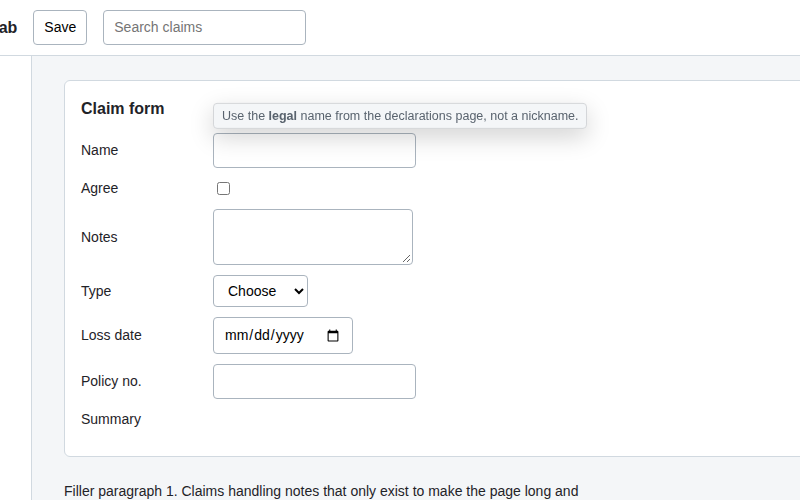

Hint above the field	Hint beside the field

Gotchas

• The audit dates from 2026-10-05. Treat the repository file as the source and this page as a summary.
• Renderer unit tests run in jsdom, so layout claims in the audit rest on the Playwright suite.
